Large Span Grantry Machining Center
Product Details:
- Product Type CNC Machine
- General Use Industry
- Type Horizontal
- Weight (kg) 17000-40000 Kilograms (kg)
- Computerized Yes
- Automatic Yes
- Power Source Electric
- Click to View more
Large Span Grantry Machining Center Price And Quantity
- 1 Piece
Large Span Grantry Machining Center Product Specifications
- Industry
- Horizontal
- Yes
- 17000-40000 Kilograms (kg)
- Electric
- CNC Machine
- Yes
- High Speed, High Precision
- 10000 RPM
- 13 Volt (v)
Product Description

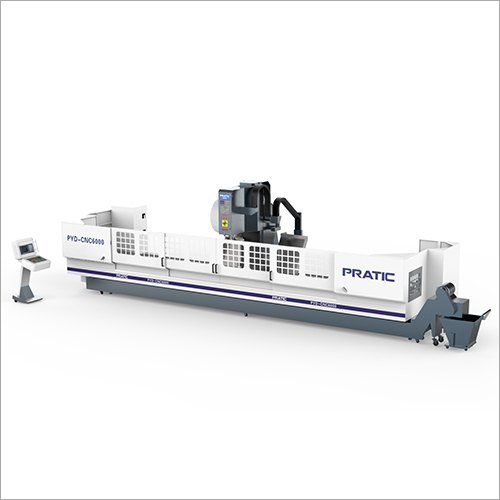

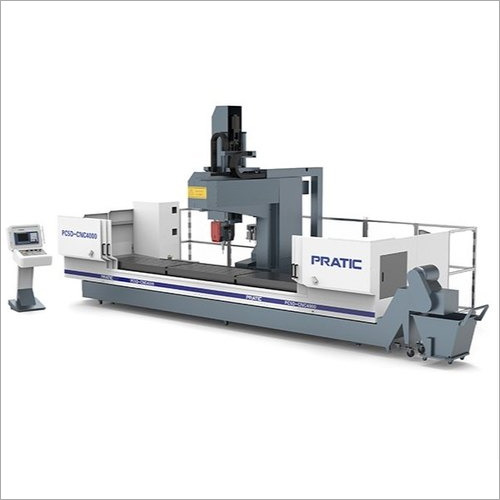

Large Span Grantry Machining Center is a flatbed type machining unit that can be used in metal as well as wood working industries to perform cutting and engraving applications. It is installed with a microcontroller-based system that makes it easier to operate this machine. The large working area of this unit allows you to perform machining on various sized work pieces. The cutting drive of this Large Span Grantry Machining Center is capable to move in XYZ directions at a speed of 15000 millimeters per minute.
SPECIFICATION
| Rapid Traverse X Y Z | 15000 mm/min |
| Y Axis Travel | 2000 mm |
| Tool Change System | BT 40 |
| Weight | 17000-40000 Kg |
| Machine Weight | 17000-40000 kg |
| Machine Height | 3900 mm |
| Style | Long Travel |
| Number Of Axes | 3 |
| Voltage | 13 Kw |
| Y - Axis Travel | 2000 mm |
| X - Axis Travel | 3000-6000 mm |
| Series | PHA series |
| Model Name/Number | S&T Pratic PHA series Large Span Grantry Machining Center |
| Spindle Speed | 10000 rpm |
| Z - Axis Travel | 800 mm |
| Brand | S&T Pratic |
