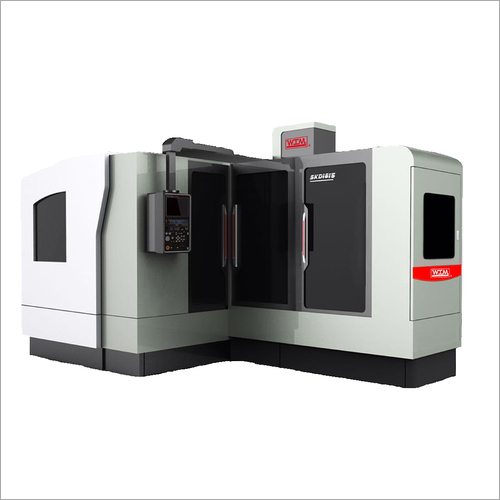

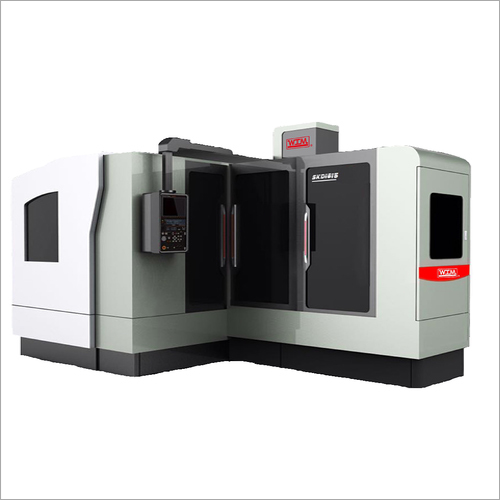

Camder 6 Axis Gun Drilling Machine
Product Details:
- Product Type Get Best Quote Camder 6 Axis Gun Drilling Machine 1.6L Get Latest Price CNC System FANUC 0i-MF Gun drill machining hole diameter 3 - 40 Maximum drilling depth in gun drill operation 1500 + 500 Milling capacity 180 Ram travel Y 1200 Table Horizontal X 1500 Tapping capacity M20 x 2.5 Saw Spindle Motor 15/18.5(30 min) Spindle Taper BT 40 Spindle Speed 6000 Gun drilling is a deep hole drilling process that uses a long, thin cutting tool to produce holes in metal at high depth-to-diameter ratios. A gun drill tool differs from a conventional twist drill by its unique head geometry; a standard gun drill has a single effective cutting edge that removes chips as it advances into a metal workpiece. View Complete Details Yes, I am interested! Camder 6 Axis Gun Drilling Machine 1.6S Interested in this product? Get Best Quote Camder 6 Axis Gun Drilling Machine
- General Use Industry
- Material Stainless Steel
- Capacity 8 Ton/day
- Automatic Yes
- Table Size 1200 x 1000
- Spindle Speed 6000 RPM
- Click to View more
Camder 6 Axis Gun Drilling Machine Price And Quantity
- 1 , , Piece
Camder 6 Axis Gun Drilling Machine Product Specifications
- Get Best Quote Camder 6 Axis Gun Drilling Machine 1.6L Get Latest Price CNC System FANUC 0i-MF Gun drill machining hole diameter 3 - 40 Maximum drilling depth in gun drill operation 1500 + 500 Milling capacity 180 Ram travel Y 1200 Table Horizontal X 1500 Tapping capacity M20 x 2.5 Saw Spindle Motor 15/18.5(30 min) Spindle Taper BT 40 Spindle Speed 6000 Gun drilling is a deep hole drilling process that uses a long, thin cutting tool to produce holes in metal at high depth-to-diameter ratios. A gun drill tool differs from a conventional twist drill by its unique head geometry; a standard gun drill has a single effective cutting edge that removes chips as it advances into a metal workpiece. View Complete Details Yes, I am interested! Camder 6 Axis Gun Drilling Machine 1.6S Interested in this product? Get Best Quote Camder 6 Axis Gun Drilling Machine
- 1200 x 1000
- Yes
- 8 Ton/day
- 6000 RPM
- Industry
- Stainless Steel
Product Description
Capitalizing on the capability of talented workforce, we are offering a wider range of Camder 6 Axis Gun Drilling Machine. It is useful for cutting fluid to be injected through the drill's hollow body to the cutting face. Therefore, provided unit is able to cut holes into wood as well as metal materials. Camder 6 Axis Gun Drilling Machine is fitted into the spindle of the drilling machine. It is pressed against the work-piece and cut a hole of circular cross-section.
SPECIFICATION
| Capacity | 20 ton |
| Spindle Speed | 4000 rpm |
| Saw Spindle Motor | BT 50 |
| Table Size | 2200 x 1600 |
| Gun Drill machine hole diameter | 3 - 50mm |
| Ejector drill machining hole diameter | 18 - 50 mm |
| Maximum drilling depth in gun drill operation | 1000mm |
| Tapping capacity | M30 x 3.5 |
| Milling capacity | 300 cc/min |
| Table Horizontal X | 2500mm |
| Ram travel Y | 1500mm |
| Column horizontal Z | 800mm |
| Spindle motor | 15/18.5 (15min ) |
| Max loading capacity | 20 ton |
| CNC System | FANUC 0i-MF |
